armStone™

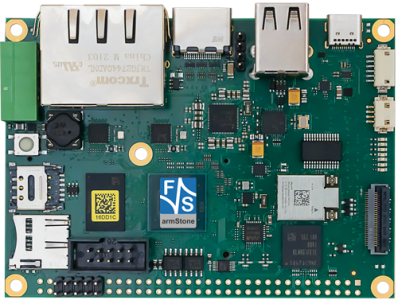

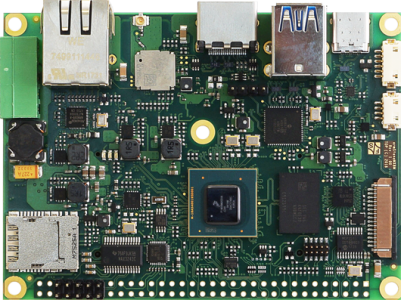

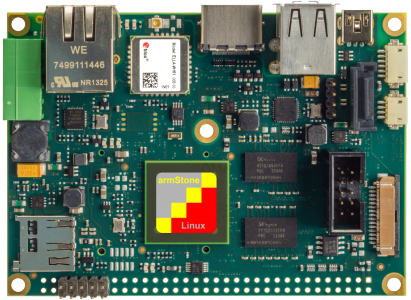

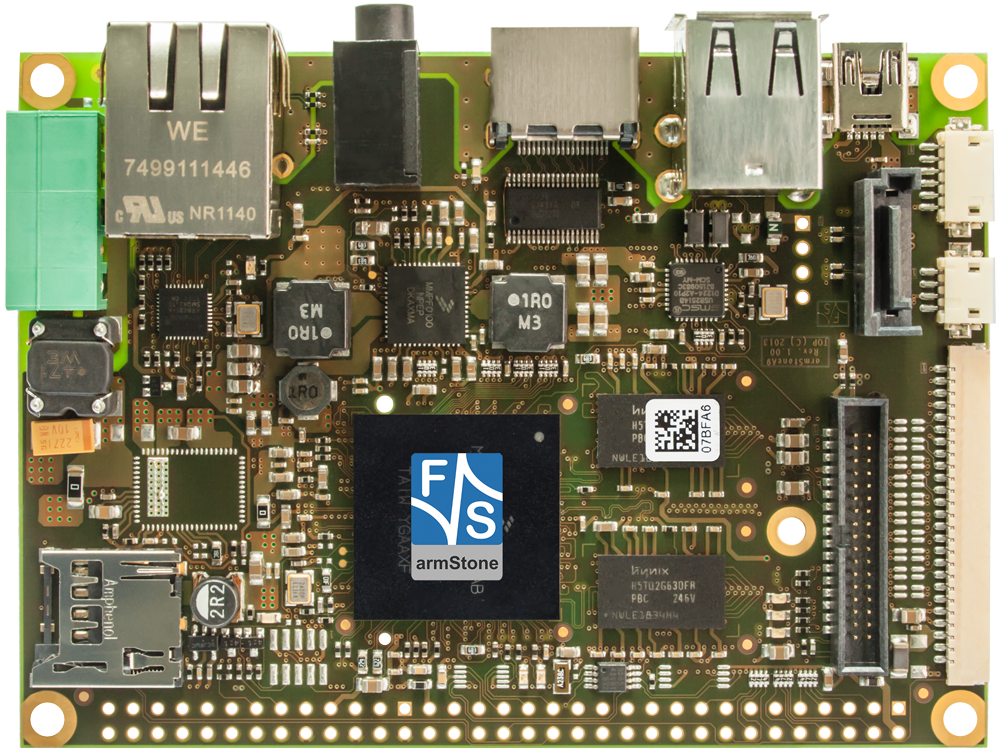

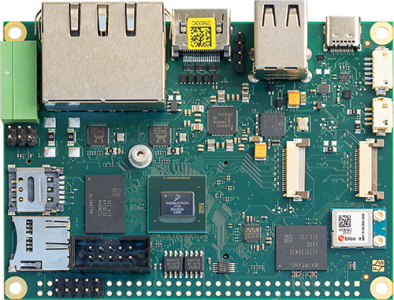

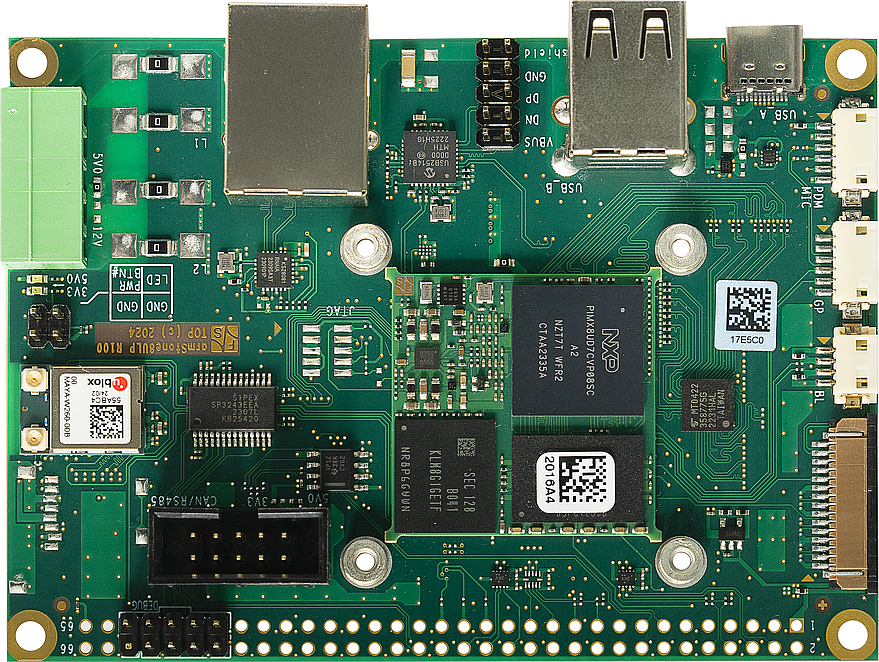

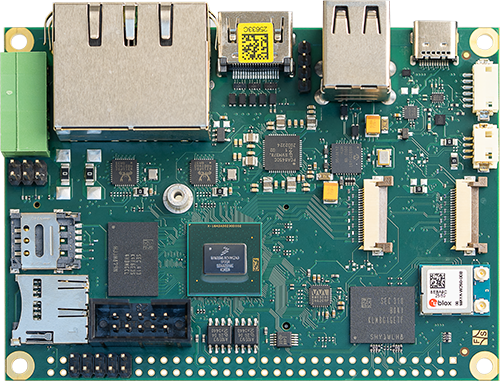

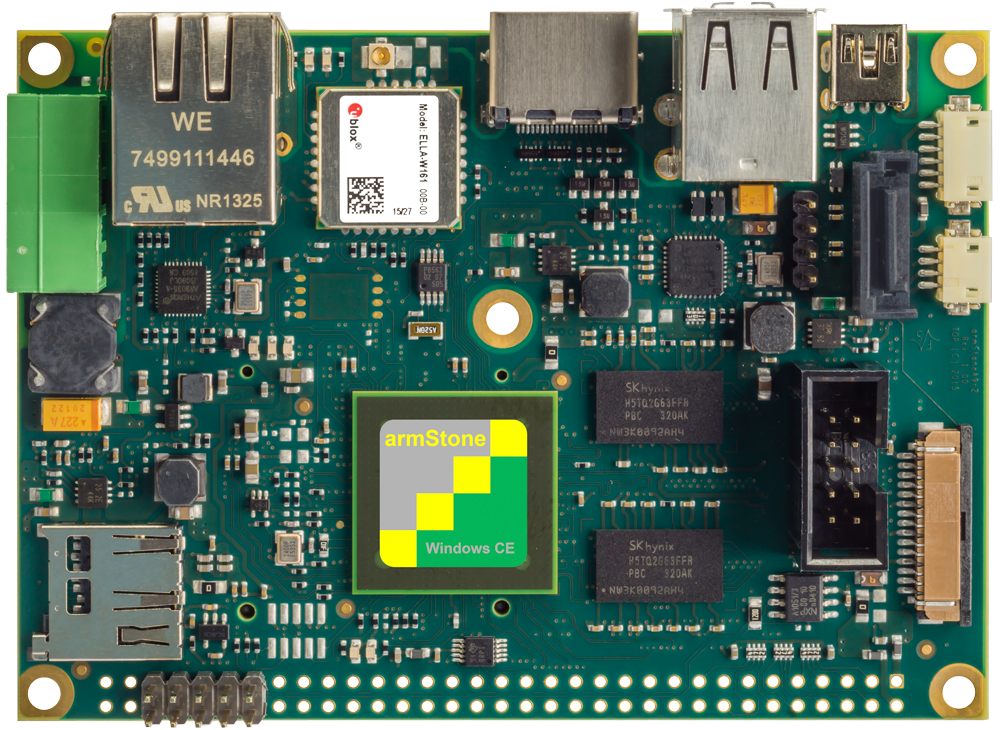

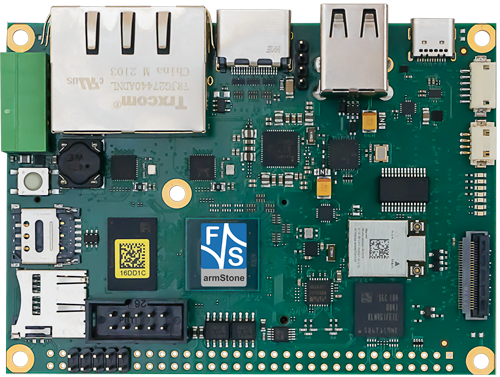

| armStone™A5 | armStone™A9/r3 | armStone™A9r2/r4 | armStone™MX8ULP | armStone™MX8MP | armStone™MX8MPr2 | |
| Status | Production | Production | Production | Samples | Production | Production |
| CPU | - | - | - | - | - | - |
| Typ | NXP Vybrid | NXP i.MX 6 | NXP i.MX 6 | NXP i.MX 8ULP | NXP i.MX 8M Plus | NXP i.MX 8M Plus |
| Kern | ARM Cortex-A5 Cortex-M4 |
ARM Cortex-A9 | ARM Cortex-A9 | ARM Cortex-A35 Cortex-M33 Hifi 4 DSP |
ARM Cortex-A53 Cortex-M7 HiFi-4 DSP, NPU, ISP |
ARM Cortex-A53 Cortex-M7 HiFi-4 DSP, NPU, ISP |
| Anzahl Kerne | 1, 2 | 1, 2, 4 | 1, 2, 4 | 2x A35 + 1x M33 + DSP | 4x A53 + M7 | 4x A53 + M7 |
| Frequenz | 500MHz + 167MHz | max 1.2GHz | max 1.2GHz | 800MHz + 216MHz + 600MHz | max. 1.8GHz + 800MHz | max. 1.8GHz + 800MHz |
| L2-Cache | 512KB | max. 1MB | max. 1MB | 512kB | 512kB | 512kB |
| NPU | - | - | - | - | 2.3 TOPS | 2.3 TOPS |
| GPU | NEON | 2D, 3D | 2D, 3D | 2D, 3D: ES™ 3.1, CL™, VG™ 1.1 | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 |
| VPU | - | 1080p60 | 1080p60 | - | Decode: 1080p60 H.265, H.264, VP9, VP8 Encode: 1080p60 H.265, H.264 |
Decode: 1080p60 H.265, H.264, VP9, VP8 Encode: 1080p60 H.265, H.264 |
| Security | - | - | - | - | - | - |
| Secure Element | - | - | - | Edgelock Secure Enclave | SE050 | SE050 |
| Betriebssystem | - | - | - | - | - | - |
| Linux | Buildroot (uboot installed) |
Buildroot Yocto (uboot installed) |
Buildroot Yocto (uboot installed) |
Yocto (uboot installed) |
Yocto (uboot installed) |
Yocto (uboot installed) |
| Windows | WCE 6.0 WEC 7 WEC 2013 |
WEC 7 WEC 2013 (EBoot installed) |
WEC 7 WEC 2013 (EBoot installed) |
- | 10 Iot Enterprise (UEFI installed) |
10 Iot Enterprise (UEFI installed) |
| Echtzeit | - | - | - | FreeRTOS | FreeRTOS | FreeRTOS |
| Speicher | - | - | - | - | - | - |
| RAM | max. 512MB DDR3L | max. 4GB DDR3L | max. 4GB DDR3L | max. 2GB LPDDR4 x32 |
max. 8GB LPDDR4 x32 |
max. 8GB LPDDR4 x32 |
| Flash | max. 1GB | max. 512MB | max. 512MB SLC | EEPROM | EEPROM | EEPROM |
| eMMC | - | - | max. 64GB | max. 128GB | max. 128GB | max. 128GB |
| Schnittstellen | - | - | - | - | - | - |
| SD-Karte | 1x microSD on board | 1x on-board | uSD Slot | 1x µSD Slot | 1x µSD Slot | 1x µSD Slot |
| Ethernet | 2x 10/100Mb IEEE 1588 |
1x 10/100/1000Mb IEEE1588 |
1x 10/100/1000Mb IEEE1588 |
1x 100 Mbit | 2x Gbit | 2x Gbit |
| WLAN | - | - | - | IEEE 802.11ax | 802.11 ac (2.4/ 5GHz) |
IEEE 802.11ax |
| BT | - | - | - | 5.4 | 5.3 | 5.4 |
| USB Host | 1-2x | 4x | 4x | 4x 2.0 | 4x 2.0 | 4x 2.0 |
| USB Device | 1x | 1x | 1x | 1x Type-C (USB 2.0) | 1x Type-C (OTG 3.0) | 1x Type-C (OTG 3.0) |
| CAN | 1-2x | 1x | 2x | 1x CAN w/ Phy | 2x CAN-FD | 2x CAN-FD |
| UART | 3x | 3x | 5x | 3x | 3x | 3x |
| I2C | 1-2x | 1x | 1x | 4x | 4x | 4x |
| SPI | 1x | 1x | 2x | 2x | 2x | 2x |
| Audio | Line In/Out/Mic | Line In/Out/Mic | Line In/Out/Mic | Line IN/ OUT/ MIC/ Headphone opt. I2S |
IN/ OUT/ MIC/ Headphone opt. I2S |
IN/ OUT/ MIC/ Headphone opt. I2S |
| Digital I/O | max. 66 | max. 66 | max. 66 | max. 32 | max. 32 | max. 32 |
| ADC | - | - | - | 4x | 4x | 4x |
| Touch Panel | 4-wire, analog resistive PCAP-Touch via I2C or USB |
4/5-wire, analog resistive PCAP Touch via I2C or USB |
4/5-wire, analog resistive PCAP Touch via I2C or USB |
via I2C or USB | via I2C or USB | via I2C or USB |
| Kamera | - | - | MIPI-CSI | MIPI-CSI (2 lanes) |
MIPI-CSI (4 lanes) |
MIPI-CSI (4 lanes) |
| PCIe | - | 1x | 1x | - | 1x with SIM Card Slot | 1x with SIM Card Slot |
| SATA | - | 1x | 1x | - | - | - |
| RTC | - | - | PCA8565 PCF85263 |
PCF85263ATL | PCF85263ATL | PCF85263ATL |
| sonstige Schnittstellen | - | - | - | RS485 | RS485, 4x PWM | RS485, 4x PWM |
| Display | - | - | - | - | - | - |
| RGB | 18bit | 18bit | - | - | - | - |
| LVDS | 18bit | 2x 18/24bit | 2x 4 lanes | 8 Lanes | 2x 4 lanes | 2x 4 lanes |
| CRT/DVI | - | 0/DVI | DVI | - | DVI | DVI |
| MIPI-DSI | - | - | - | 1x 4 Lanes | 1x 4 lanes | 1x 4 lanes |
| Allgemein | - | - | - | - | - | - |
| V_IN | 5V DC / ±5% opt. 24V DC |
5V DC / ±5% opt. 24V DC |
5V DC / ±5% opt. 24V DC |
5V DC / ±5% opt. 24V DC |
5V DC / ±5% opt. 24V DC |
5V DC / ±5% opt. 24V DC |
| T_AMB | 0°C - +70°C opt. -25°C - +85°C |
0°C - +70°C -25°C - +85°C |
0°C - +70°C -25°C - +85°C |
0°C - +70°C -25°C - +85°C -40°C - +85°C |
0°C - +70°C -25°C - +70°C |
0°C - +70°C -25°C - +70°C |
| Größe | 100x72x15mm | 100x72x15mm | 100x72x15mm | 100x72x15mm | 100x72x15mm | 100x72x15mm |
| Verfügbarkeit | 2027+ Windows: May, 2028 |
2035+ Windows: May, 2028 |
2035+ Windows: May, 2028 |
2038+ | 2036+ | 2036+ |
| armStone™A5 | armStone™A9/r3 | armStone™A9r2/r4 | armStone™MX8ULP | armStone™MX8MP | armStone™MX8MPr2 |
 |
Starterkit armStone™A9/r3 Windows armStoneA9/r3-V1-WEC7, Kabelkit, 7“ EDT RGB TFT mit resistivem Touch inkl. Adapter und Kabeln, Power Adapter, Zugangsdaten zu Dokumentation und Software Bestellnr.: aStoneA9-SKIT-WCE |
299,- € | ||
|
Starterkit armStone™A9/r3 Linux armStoneA9/r3-V1-LIN, Kabelkit, 7“ EDT RGB TFT mit resistivem Touch inkl. Adapter und Kabeln, Power Adapter, Zugangsdaten zu Dokumentation und Software Bestellnr.: aStoneA9-SKIT-LIN |
299,- € |
 |
Starterkit armStone™MX8ULP Linux Starterkit mit armStoneMX8ULP, Kabelkit, Antenne, Power Adapter, Zugangsdaten zu Dokumentation und Software Bestellnr.: aStone8ULP-SKIT-L1 |
300,- € |
 |
Starterkit armStone™MX8MP Windows Starterkit mit armStoneMX8MP, Kühlkörper, 24V Netzteil, Antenne, Kabelkit, Zugangsdaten zu Dokumentation und Software Bestellnr.: aStoneMX8MP-SKIT-W |
360,- € |
|
Starterkit armStone™MX8MPr2 Linux Starterkit mit armStoneMX8MPr2-V4I, Kühlkörper, 24V Netzteil, Antenne, Kabelkit, Zugangsdaten zu Dokumentation und Software Bestellnr.: AS8MPr2-SKIT-LIN |
360,- € |
| Architektur | Typ | Release Name | NBoot | Bootloader | UEFI | Kernel | OS | Help File | Software | VM |
|---|---|---|---|---|---|---|---|---|---|---|
| FSIMX6 | Buildroot | fsimx6-B2024-04 | U-Boot 2021.04 | Linux 5.15.148 | Buildroot 2023.02.06 | |||||
| FSIMX6 | Yocto | fsimx6-Y2026.06 | U-Boot 2021.04-fs1.4 | Linux 6.6.129 | Yocto 5.0.17 Scarthgap |
| Architektur | Typ | Release Name | NBoot | Bootloader | UEFI | Kernel | OS | Help File | Software | VM |
|---|---|---|---|---|---|---|---|---|---|---|
| FSIMX6 | Buildroot | fsimx6-B2024-04 | U-Boot 2021.04 | Linux 5.15.148 | Buildroot 2023.02.06 | |||||
| FSIMX6 | Yocto | fsimx6-Y2026.06 | U-Boot 2021.04-fs1.4 | Linux 6.6.129 | Yocto 5.0.17 Scarthgap |
| Architektur | Typ | Release Name | NBoot | Bootloader | UEFI | Kernel | OS | Help File | Software | VM |
|---|---|---|---|---|---|---|---|---|---|---|
| FSIMX8MP | Yocto | fsimx8mp-Y2025.12 | U-Boot 2024.04 | Linux 6.6.112 | Yocto 5.0.14 Scarthgap | |||||
| FSIMX8MP | Windows | iMX8MP_W10_V120 | nboot-fsimx8mp-iot-2024.06.1 | U-Boot uboot-fsimx8mp-iot-2024.08 | uefiIMX8MP_X_12 | 1.2 | Windows 10 Iot LTSC 2021 |
|
||
| FSIMX8MP | FreeRTOS | fsimx8mp-V2024.09 | sdk-2.15.0 |
|
||||||
| FSIMX8MP | Yocto | fsimx8mp-Y2024.07.2 | U-Boot v2021.04-fs1.3 | Linux v5.15.197-2.2.0-fs1.0 | Yocto 4.0.32 Kirkstone |
| Architektur | Typ | Release Name | NBoot | Bootloader | UEFI | Kernel | OS | Help File | Software | VM |
|---|---|---|---|---|---|---|---|---|---|---|
| FSIMX8MP | Yocto | fsimx8mp-Y2025.12 | U-Boot 2024.04 | Linux 6.6.112 | Yocto 5.0.14 Scarthgap | |||||
| FSIMX8MP | Windows | iMX8MP_W10_V120 | nboot-fsimx8mp-iot-2024.06.1 | U-Boot uboot-fsimx8mp-iot-2024.08 | uefiIMX8MP_X_12 | 1.2 | Windows 10 Iot LTSC 2021 |
|
||
| FSIMX8MP | FreeRTOS | fsimx8mp-V2024.09 | sdk-2.15.0 |
|
||||||
| FSIMX8MP | Yocto | fsimx8mp-Y2024.07.2 | U-Boot v2021.04-fs1.3 | Linux v5.15.197-2.2.0-fs1.0 | Yocto 4.0.32 Kirkstone |
| Architektur | Typ | Release Name | NBoot | Bootloader | UEFI | Kernel | OS | Help File | Software | VM |
|---|---|---|---|---|---|---|---|---|---|---|
| FSIMX8ULP | Yocto | fsimx8ulp-Y2025.11.1 | U-Boot 2024.04 | Linux 6.6.129 | Yocto 5.0.16 Scarthgap |
